Description

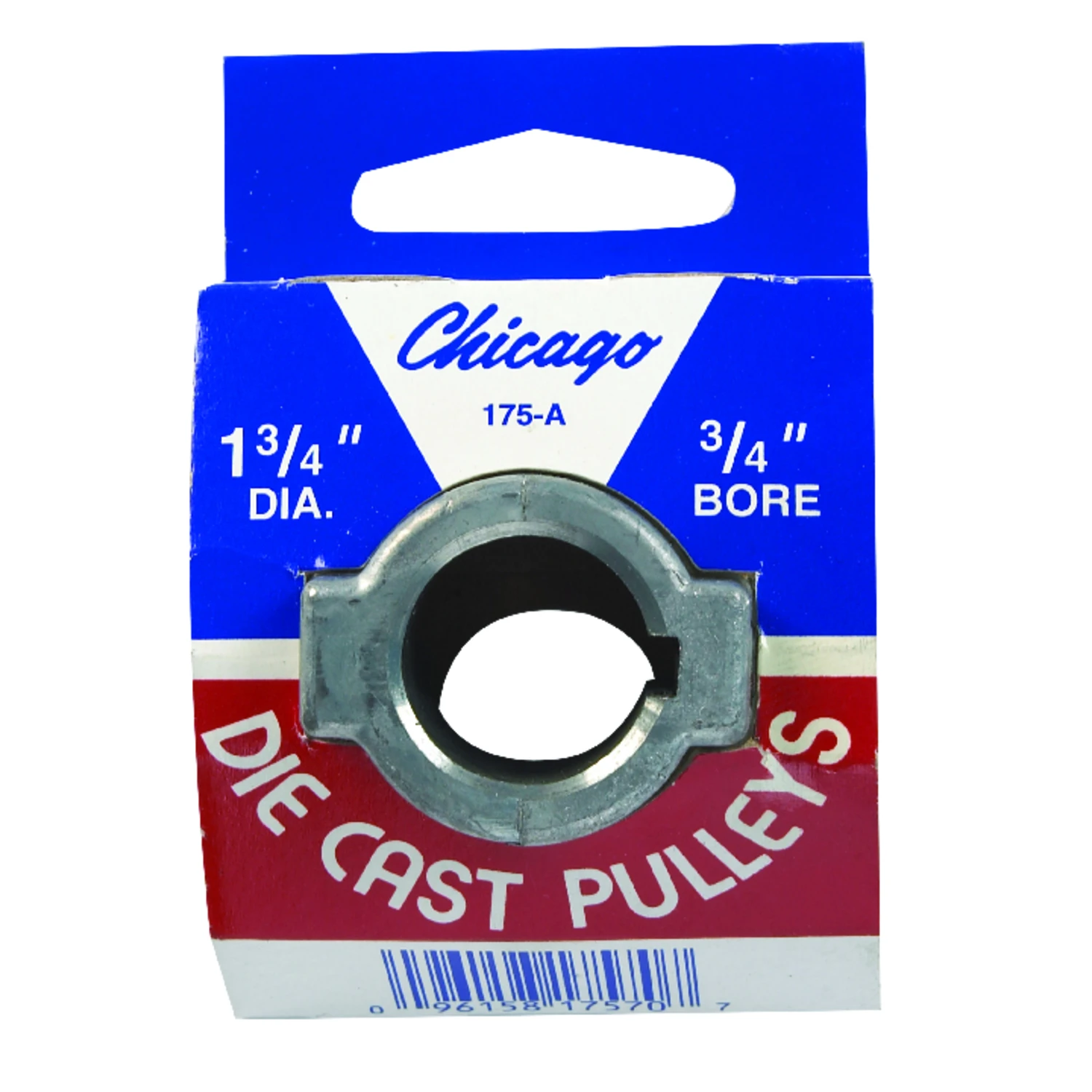

Chicago Die Casting 3/4″ Bore x 1-3/4″ Diameter Single V-Groove Die Cast Pulley is for use with 4L or 1/2″ x 11/32″ belts. It has a hollow head set screw and is made of zinc for durability. The pulley has a face width of 11/16″, a pitch diameter of 1-1/2″, and a keyway size of 3/16″ x 3/32″. It includes hollow head set screws. For A belts, pulleys from 2 inch to 12 inch have keyways except 3/8 inch and 1/2 inch bores and 3/4 inch bores in pulleys less than 4 inch in diameter All pulleys are with slotted headless set screws. In Sta-Pak cartons.
- 3/4 In. Bore x 1-3/4 In. Diameter Single V-Groove Die Cast Pulley.
- For 4L or 1/2 In. x 11/32 In. belts.
- Has a hollow head set screw.
- zinc.
- Face width of 11/16″.
- Pitch diameter of 1-1/2″.
- Keyway size of 3/16 In. x 3/32″.
- Includes hollow head set screws.
| SKU | 113613 | UPC | 096158175707 |
| Weight | 0.25 lbs | Package Width | 1.8 in |
| Package Length | 1.8 in | Package Height | 1.2 in |
| Model Number | 175A6 | Brand | Chicago Die Casting |
