Description

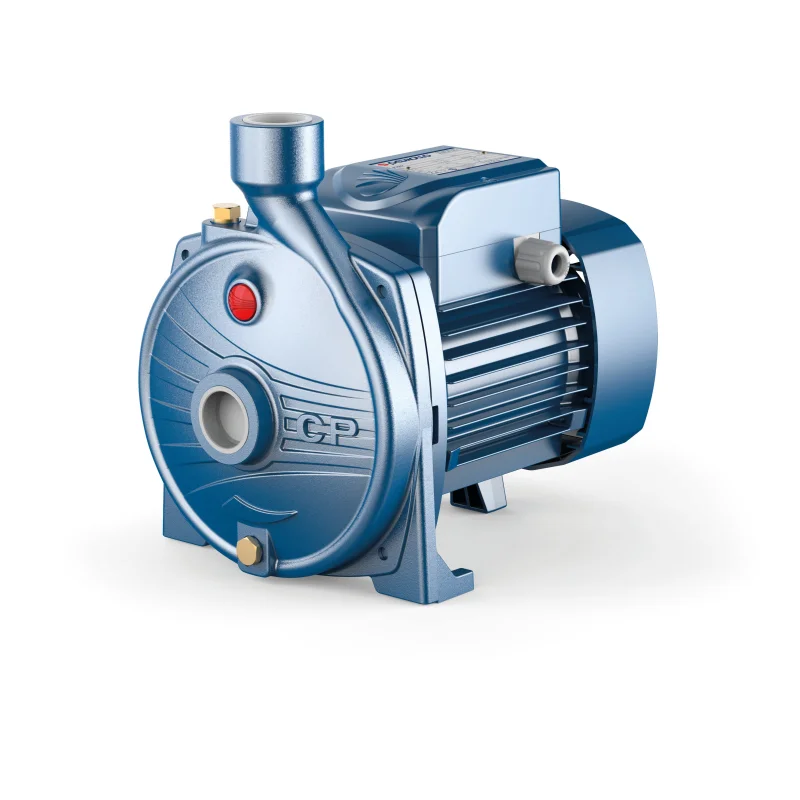

Pedrollo CPM190 (CPm 190) 50Hz is a compact, single-impeller centrifugal pump designed to move clean water in domestic, agricultural, and light commercial applications. With a 2 HP (1.5 kW) single-phase motor at 230V, 50 Hz, it delivers reliable pressure and flow for boosting, irrigation, tank transfer, and general water distribution.
Key Specs
- Power: 2 HP (1.5 kW), single-phase 230V, 50 Hz
- Performance range: 30140 L/min (1.88.4 m/h) at 2646 m head
- Max liquid temp: +90C (ambient up to +40C)
- Max suction lift: 7 m
- Ports: 1 inlet x 1 outlet
- Protection/insulation: IPX4, Class F
Construction
- Cast-iron casing for durability
- Brass impeller (CP series) and stainless steel motor shaft
- Thermal protection integrated in winding (single-phase)
Dimensions & Weight
- Approx. 364 242 290 mm; weight ~21.5 kg
Typical Uses
- Pressure boosting with pressure tanks or electronic controllers
- Garden and landscape irrigation
- Transfer from storage tanks/cisterns
- General water circulation for building services
Whats in the Box
- CPM190 (CPm 190) pump unit and manual
Important: This is a 50Hz modelverify your local power supply. For clean water and non-aggressive liquids only. Install with proper electrical protection and in a sheltered location.
