Description
Laser diode: Line: 630 – 650 nm, <10mW
Operating temperature: -10 40 C
Storage temperature: -20 70 C
Laser class: 2
Working range: 30 m
Working range with receiver: 120 m (Diameter)
Working range without receiver: 30 m (Radius)
Accuracy: 0.2 mm/m
Self-levelling range: 4
Levelling time: 4 s
Dust and splash protection: IP 54
Power supply: 4 x 1.5 V LR6 (AA)
Operating time (max.): 4 h in 3-line mode
Tripod thread: 1/4″, 5/8″
Weight, approx.: 0.82 kg
Colour of laser line: red
Projection: 3 x 360 line
Compatible laser receivers: LR 6 + 7
bosch powertools measuringtool levelingtool laserline laserrange

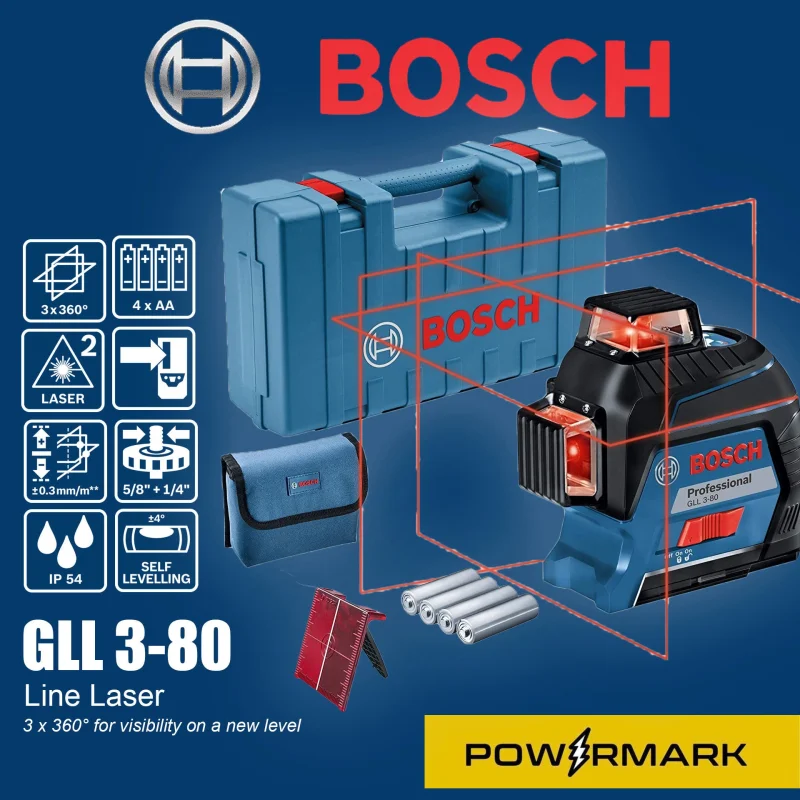

1 x BOSCH GLL 3-80 Line Laser (Measuring Tool)
35 x 25 x 19
2kg
