Description
SPECIFICATIONS
Laser diode Line: 500 540 nm, <10 mW , Point: 630 650, <1 mW
Operating temperature -10 50 C
Storage temperature -20 70 C
Laser class 2
Working range 15 m
Accuracy 0.3 mm/m
Working range of laser points, max. 10 m (top) , 10 m (bottom)
Self-levelling range 4
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode , 8 h in cross line mode , 10 h in line and point mode , 12 h in line mode , 22 h in point mode
Tripod thread 1/4″, 5/8″
Weight, approx. 0.49 kg
Colour of laser line green
Projection 2 lines / 2 points
Plumb point accuracy 0.7 mm/m
bosch powertools measuringtool levelingtool
INCLUSIONS

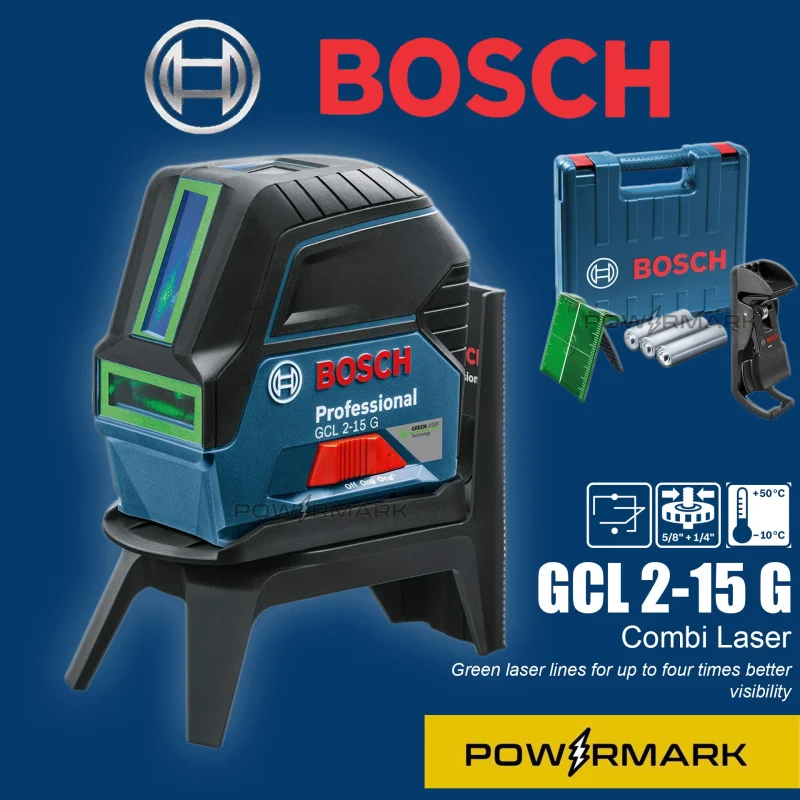

1 x BOSCH GCL 2-15 G Green Line Laser;
3 x Triple Battery
1 x Manual;
DIMENSIONS
27 x 23 x 13
WEIGHT
2kg
