Description

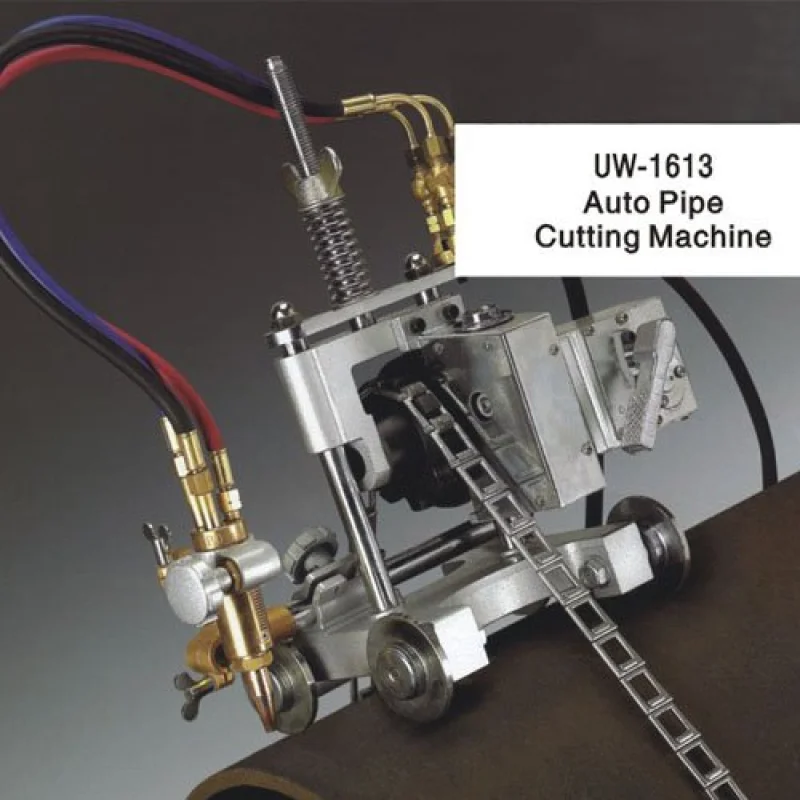

- Auto Pipe Cutting Machine Application This machine is a remote control motorized Oxy-Fuel pipe cutting unit and with easy to change length of the chain for various size pipes. Features: Cutting can be done in clockwise or anti-clockwise direction from both sides of the machine. The machine can bevel up to 45 by selecting the required angle on the torch holder.
- The machine torch can be adjusted vertically and horizontally alongside the pipe surface by rack and pinion attachments. Remote control unit. Specifications: Weight: 35 lb.
- Size: 11 x 11 x 18 in. Power source: 110 V 10 Cutting speed: 5 1150 mm/min (0.2 45 in/min) Cutting thickness: 6 – 50 mm (0.2 2 in) Cutting bevel: 45 Nozzles: G02 1, 2 and 3 Airco/Concoa Style. Gases: Oxygen and Acetylene/LPG.
- Pipe cutting diameter: 150 600 mm. Motor: 6000 rpm, 85 W. Remote controlled motorized Oxy-Fuel pipe cutting unit 1 torch 3 tips N 1, 2 and 3.
- Pipe cutting diameter: 150 “” 600 mm. with Standardtips. Cutting thickness: 6 – 50 mm (0.2 “” 2 in)
