Description

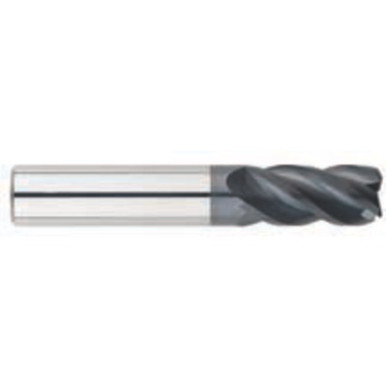

Country of OriginUSACutting Diameter (DC) 5/16″Applicable Material Stainless Steel | Cast Iron | Super-Alloys / TitaniumConnection Diameter Machine Side (DCONMS) 5/16″Corner Radius (RE) u200e0.015″ – 0.020″Depth of Cut Maximum (APMX) 3/4″Tool Type Single EndOverall Length (OAL) u200e2-1/2″Length Group RegularCutting Edge Material CarbideCoolant Supply Property (CSP) ExternalCoating AlTiNStyle HPE Ultra-High Performance End MillsFlute Count (NOF) 4Decimal Equivalent 0.3125″Flute Helix Angle (FHA) VariableMeasurement Type InchShank Type PlainSeries/List 5994End Shape Corner RadiusCorner Radius (RE) / Chamfer Width (CHW) u200e0.015″ – 0.020″Usable Length (LU) 3/4″
