Description

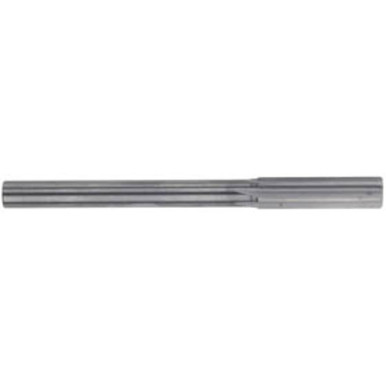

Straight Shank Chucking Reamer – Dowel Pin Dowel Pin Reamersare produced with increased back taper and minus diameter tolerance45 Degree chamfer for reaming most materialsDiameter Tolerance +.0000/-.0002Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 0.3745″Cutting Edge Material CarbideUsable Length (LU) u200e1-1/4″Shank Type RoundConnection Diameter Machine Side (DCONMS) 0.3745″Flute Type StraightFlute Count (NOF) 6Length Chip Flute (LCF) u200e1-1/4″Overall Length (OAL) u200e3-1/2″Measurement Type InchCutting Direction (HAND) Right HandSeries/List 5661Flute Helix Angle (FHA) 0 DegreesDecimal Equivalent 0.3745″
